“OLED TECHNOLOGY” A Seminar Report Submitted in partial fulfillment of The requirements for the award of the Degree of BACHELOR OF TECHNOLOGY IN. pdf, report, presentation, source code, abstract, seminar, project idea, seminar topics, project, project topics,latest technology,Organic LED Display-OLED idea. OLED. Seminar Report On OLED. ABSTRACT. OLED is a solid state device composed of thin OLEDs can have either two layers or three layers of organic.


Oled Seminar Report Pdf

Author:CHANELLE MOKRISKI
Language:English, Spanish, Dutch
Country:Dominica
Genre:Academic & Education
Pages:160
Published (Last):28.07.2016
ISBN:770-5-58523-691-1
ePub File Size:26.71 MB
PDF File Size:11.29 MB
Distribution:Free* [*Regsitration Required]
Downloads:25540
Uploaded by: BETSY

oled seminar report - Free download as Word Doc .doc /.docx), PDF File .pdf), Text File .txt) or read online for free. this report describe oled technology for. Seminar Report On OLED - Download as Word Doc .doc), PDF File .pdf), Text File .txt) or read online. Organic LED full report - Download as Word Doc .doc), PDF File .pdf), Text File ( .txt) Organic LED Seminar Report ' OLED based flat panel displays as.

Typical polymers used in PLED displays include derivatives of poly p-phenylene vinylene and polyfluorene. Substitution of side chains onto the polymer backbone may determine the colour of emitted light[33] or the stability and solubility of the polymer for performance and ease of processing. Phosphorescent organic light emitting diodes use the principle of electrophosphorescence to convert electrical energy in an OLED into light in a highly efficient manner.

Typically, a polymer such as poly n-vinylcarbazole is used as a host material to which an organometallic complex is added as a dopant. Iridium complexes[40] such as Ir mppy 3[38] are currently the focus of research, although complexes based on other heavy metals such as platinum[39] have also been used.

The heavy metal atom at the centre of these complexes exhibits strong spin-orbit coupling, facilitating intersystem crossing between singlet and triplet states. By using these phosphorescent materials, both singlet and triplet excitons will be able to decay radiatively, hence improving the internal quantum efficiency of the device compared to a standard PLED where only the singlet states will contribute to emission of light.

Device Architectures Structure Bottom or top emission: Bottom emission devices use a transparent or semi-transparent bottom electrode to get the light through a transparent substrate. Top emission devices[43][44] use a transparent or semitransparent top electrode emitting light directly.

Top-emitting OLEDs are better suited for active-matrix applications as they can be more easily integrated with a nontransparent transistor backplane. Transparent OLEDs use transparent or semi- transparent contacts on both sides of the device to create displays that can be made to be both top and bottom emitting transparent.

TOLEDs can greatly improve contrast, making it much easier to view displays in bright sunlight. Stacked OLEDs use a pixel architecture that stacks the red, green, and blue subpixels on top of one another instead of next to one another, leading to substantial increase in gamut and color depth, and greatly reducing pixel gap.

Using this process, lightemitting devices with arbitrary patterns can be prepared. The gas is expelled through a micron sized nozzle or nozzle array close to the substrate as it is being translated. This allows printing arbitrary multilayer patterns without the use of solvents.

A mechanical mask has openings allowing the vapor to pass only on the desired location. Backplane technologies For a high resolution display like a TV, a TFT backplane is necessary to drive the pixels correctly. Lower cost in the future: OLEDs can be printed onto any suitable substrate by an inkjet printer or even by screen printing,[51]theoretically making them cheaper to produce than LCD or plasma displays. Roll-roll vapourdeposition methods for organic devices do allow mass production of thousands of devices per minute for minimal cost, although this technique also induces problems in that multi-layer devices can be challenging to make.

As the substrate used can be flexible such as PET. OLED pixel colours appear correct and unshifted, even as the viewing angle approaches 90 from normal. Better power efficiency: LCDs filter the light emitted from a backlight, allowing a small fraction of light through so they cannot show true black, while an inactive OLED element does not produce light or consume power. Disadvantages Current costs: OLED manufacture currently requires process steps that make it extremely expensive.

Specifically, it requires the use of Low-Temperature Polysilicon backplanes; LTPS backplanes in turn require laser annealing from an amorphous silicon start, so this part of the manufacturing process for AMOLEDs starts with the process costs of standard LCD, and then adds an expensive, time-consuming process that cannot currently be used on large-area glass substractors.

Color balance issues: Additionally, as the OLED material used to produce blue light degrades significantly more rapidly than the materials that produce other colors, blue light output will decrease relative to the other colors of light.

This differential color output change will change the color balance of the display and is much more noticeable than a decrease in overall luminance.

In order to delay the problem, manufacturers bias the colour balance towards blue so that the display initially has an artificially blue tint, leading to complaints of artificial-looking, over-saturated colors. More commonly, though, manufacturers optimize the size of the R, G and B subpixels to reduce the current density through the subpixel in order to equalize lifetime at full luminance. Water damage: Water can damage the organic materials of the displays.

Therefore, improved sealing processes are important for practical manufacturing. Water damage may especially limit the longevity of more flexible displays. However, with the proper application of a circular polarizer and anti-reflective coatings, the diffuse reflectance can be reduced to less than 0. With 10, fc incident illumination typical test condition for simulating outdoor illumination , that yields an approximate photopic contrast of This can lead to reduced real-world battery life in mobile devices.

The most pronounced example of this can be seen with a near UV laser such as a Bluray pointer and can damage the display almost instantly with more than 20 mW leading to dim or dead spots where the beam is focused.

This is usually avoided by installing a UV blocking filter over the panel and this can easily be seen as a clear plastic layer on the glass. Removal of this filter can lead to severe damage and an unusable display after only a few months of room light exposure.

The organic future of OLEDs 16 Conclusion 17 Generation of OLED 0 4 2. Slight emitting diode 1 4 3. Multi layered OLED 2 5 4.

Structure of OLED 6 6 8. Working of OLED 7 7 9. Colour creation 8 8 Passive OLED 9 9 Active OLED 10 10 Transparent OLED 11 10 Top emitting OLED 12 11 Foldable OLED 13 12 White OLED 14 12 OLED can provide displays on electronic devices and use less power than conventional light emitting diodes i. LED used today. Like an LED, an OLED is a solid state semiconductor device that is to nanometers thick and times smaller than the human hair.

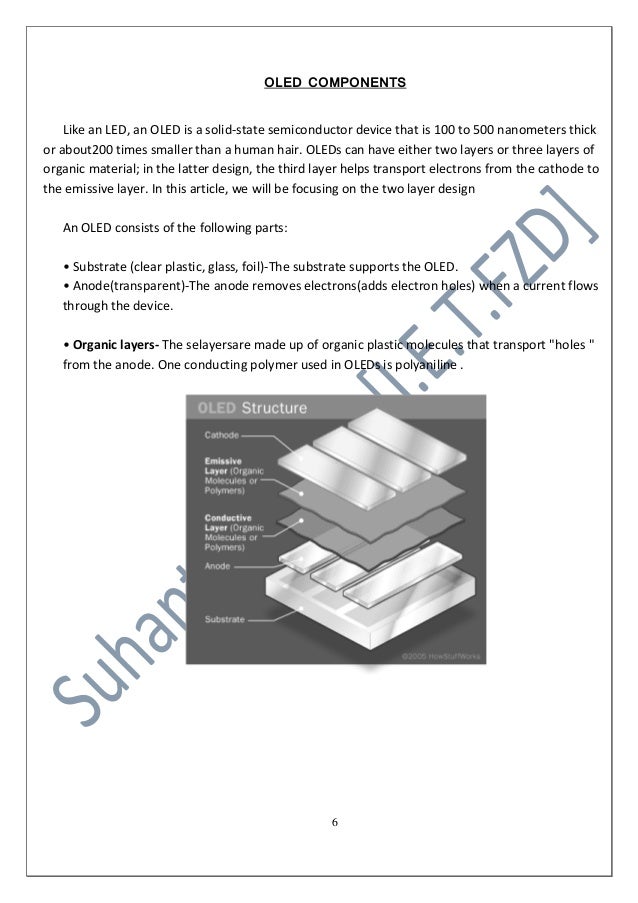

OLED can have two layers or three layers of organic material. It emits light through a process called electrophosphorescene. An OLED consists of the following parts: The layers are made up of small organic molecules or macro polymers that conduct electricity.

They have conductivity levels ranging from insulators to conductors, so OLEDs are considered as organic semiconductors.

OLED : Seminar Reports | Paper Presentations | PPT | DOC | PDF

The layer of organic semiconductor material is formed between two electrodes, where at least one of the layers is transparent. This layer of organic semiconductor material is formed between two electrodes, where at least one of the electrodes is transparent. Such devices can be used in television screens, computer monitors, small, portable system screens such as cell phones and PDAs, watches, advertising, information and indication.

OLEDs can also be used in light sources for general space illumination, and large-area light-emitting elements. Due to the younger stage of development, OLEDs typically emit less light per unit area than inorganic solid-state based LEDs which are usually designed for use as point-light sources. OLED displays do not require a backlight to function. Thus, they can display deep black levels and can be thinner and lighter than LCD panels.

One day electricity was discovered and everything is revolutionized. Bulbs were used at that time.

Also read: SONAR PDF REPORT

In the third generation bulbs were replaced by incandescent light and fluorescent light. The emissive layer, where light is made by the emission of radiation whose frequency is in the visible region is made up of organic plastic molecules that transport electrons from the cathode and the polymer used is polyfluorene.

The conductive layer is made up of organic plastic molecules that transport holes from the anode and the conducting polymer used is polyaniline. The substrate that supports OLED is made up of flexible plastic, inexpensive glass or metal foil. Anode, that removes electrons when a current flows through the device, is generally made up of Indium tin oxide and it is transparent and cathode that injects electrons when a current flows through the device is made up of metals like aluminum and calcium, which may or may not be transparent depending on the type of OLED.

An electrical current flows from the cathode to the anode through the organic layers. When a voltage is applied to OLED, the holes and the electrons are generated from each of the two electrodes, which have a positive and negative electric charge respectively. The light is emitted when the layer returns to its original stability.

The molecular structure of organic materials has limitless combinations, each of which varies in its colour and durability. Within these limitless combinations, identifying organic materials that provide high efficiency and long life will determine its practical application.

DOWNLOAD EBOOKS

A semi-conducting material such as silicon has an energy gap between its lower, filled electrons state called as valence band and its upper, unfilled electrons state called as conduction band.

As electrons drop to the lower state and occupy holes, photons of visible light are emitted. The colour of the light depends on the type of organic molecule in the emissive layer and the intensity or brightness of the light depends on the amount of electrical current applied.

In this condition, holes move to the anode and electrons to the cathode, so they are moving away from each other and do not recombine. Indium tin oxide is commonly used as the anode material. It is transparent to visible light and has a high work function which promotes injection of holes into the polymer layer.

Metals such as aluminum and calcium are often used for the cathode as they have low work functions which promote injection of electrons into the polymer layer.

Like an LED, an OLED is a solid state semiconductor device that is to nanometers thick and times smaller than the human hair. OLED can have two layers or three layers of organic material.

It emits light through a process called electrophosphorescene. The layers are made up of small organic molecules or macro polymers that conduct electricity. They have conductivity levels ranging from insulators to conductors, so OLEDs are considered as organic semiconductors.

The layer of organic semiconductor material is formed between two electrodes, where at least one of the layers is transparent. This layer of organic semiconductor material is formed between two electrodes, where at least one of the electrodes is transparent.

Such devices can be used in television screens, computer monitors, small, portable system screens such as cell phones and PDAs, watches, advertising, information and indication. OLEDs can also be used in light sources for general space illumination, and large-area light-emitting elements. Due to the younger stage of development, OLEDs typically emit less light per unit area than inorganic solid-state based LEDs which are usually designed for use as point-light sources.

OLED displays do not require a backlight to function.

Thus, they can display deep black levels and can be thinner and lighter than LCD panels. One day electricity was discovered and everything is revolutionized.

Organic LED full report

Bulbs were used at that time. In the third generation bulbs were replaced by incandescent light and fluorescent light. The emissive layer, where light is made by the emission of radiation whose frequency is in the visible region is made up of organic plastic molecules that transport electrons from the cathode and the polymer used is polyfluorene.

The conductive layer is made up of organic plastic molecules that transport holes from the anode and the conducting polymer used is polyaniline. The substrate that supports OLED is made up of flexible plastic, inexpensive glass or metal foil. Anode, that removes electrons when a current flows through the device, is generally made up of Indium tin oxide and it is transparent and cathode that injects electrons when a current flows through the device is made up of metals like aluminum and calcium, which may or may not be transparent depending on the type of OLED.

An electrical current flows from the cathode to the anode through the organic layers. When a voltage is applied to OLED, the holes and the electrons are generated from each of the two electrodes, which have a positive and negative electric charge respectively.

The light is emitted when the layer returns to its original stability. The molecular structure of organic materials has limitless combinations, each of which varies in its colour and durability. Within these limitless combinations, identifying organic materials that provide high efficiency and long life will determine its practical application.

A semi-conducting material such as silicon has an energy gap between its lower, filled electrons state called as valence band and its upper, unfilled electrons state called as conduction band.

As electrons drop to the lower state and occupy holes, photons of visible light are emitted. The colour of the light depends on the type of organic molecule in the emissive layer and the intensity or brightness of the light depends on the amount of electrical current applied. In this condition, holes move to the anode and electrons to the cathode, so they are moving away from each other and do not recombine.

Indium tin oxide is commonly used as the anode material. It is transparent to visible light and has a high work function which promotes injection of holes into the polymer layer.

Metals such as aluminum and calcium are often used for the cathode as they have low work functions which promote injection of electrons into the polymer layer.

OLED : Seminar Reports | Paper Presentations | PPT | DOC | PDF

The primary colour matrix is arranged in red, green and blue pixels which are mounted directly to a printed circuited board. Each individual OLED element is housed in a special micro cavity structure designed to greatly reduce ambient light interference that also improves overall colour contrast.

The thickness of the organic layer is adjusted to produce the strongest light to give a colour picture. Further, the colours are refined with a filter and purified without using a polarizer to give outstanding colour purity. The anode strips are arranged perpendicular to the cathode strips. The intersections of the cathode and anode make up the pixels where light is emitted.

External circuitry applies current to selected strips of anode and cathode, determining which pixels get turned on and which pixels get turned off. The brightness of each pixel is proportional to the amount of applied current.The buffers work by the same mechanism, aiding electron flow.

Another possibility is to have a small number of feedback loops. Conclusion 17 Slight emitting diode 1 4 3. Considerably better balance can be achieved by using two organic layers one of which is matched to the anode and transports holes with the other optimized for electron injection and transport. This technology can be used for heads-up displays. Related titles. Top-emitting OLEDs are better suited for active-matrix applications as they can be more easily integrated with a nontransparent transistor backplane.

The temperature range of OLEDs greatly exceeds that of LCDs and exhibits very little color shift with temperature over even military specification environmental extremes. Further, the colours are refined with a filter and purified without using a polarizer to give outstanding colour purity.
